Smart Start Battery Isolator & Wiring Kit 12V
$279.00

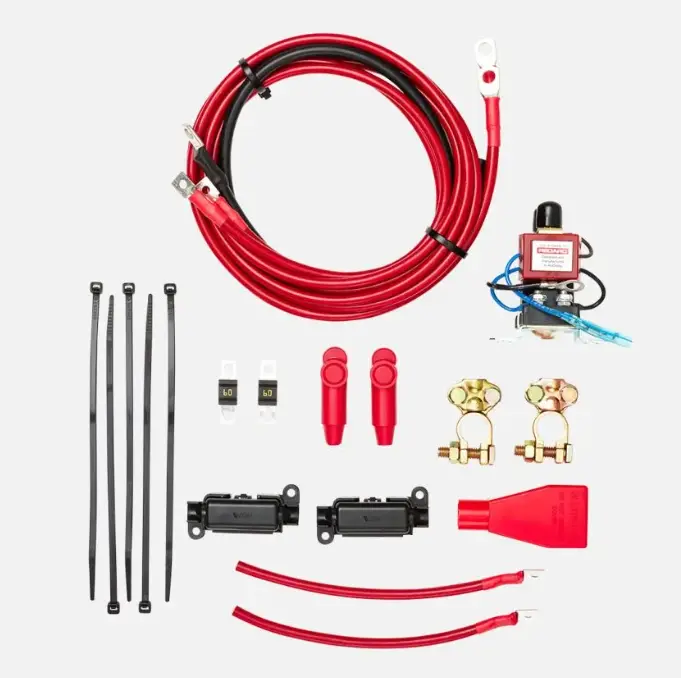

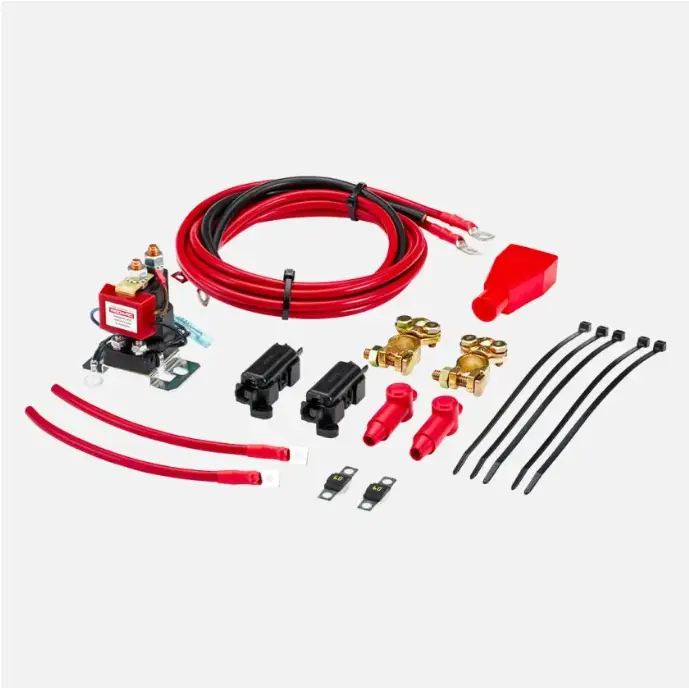

The Smart Start® Dual Battery Isolator and Wiring Kit (SBI12KIT) is equipped with everything needed to install a Smart Start® Dual Battery Isolator including the Smart Start® itself.
High-quality MTA 60 amp fuses and fuse holders with the corresponding ring terminals are already attached to the wires.
The SBI12KIT prevents your secondary battery from draining your main battery. It works for harsh automotive or marine environments. And, it significantly extends your battery life, proving to be cost-effective and efficient.
Features
- Overmold design
- Compact size and easy installation
- Silver contacts for longer life and suitable for marine applications
- Power saving technology
- Fault indication
- Fully surge protected
| Max. Inrush Current | 400A |
|---|---|
| Max. Continous Current | 100A |
| Turn On Voltage | 13.2V |
| Turn Off Voltage | 12.7V |
| Turn On Delay | 5 seconds |
| Turn Off Delay | 10 seconds |
| Standby Current | <5mA |
| Weight | 7 oz (200 g) SBI only |
| height | 2.48″ (70 mm) |
| width | 2.95″ (75 mm) |
| depth | length | 3.15″ (80 mm) |
| Warranty | 2 Years |
| System Voltage | 12V |
| Output Voltage | 12V DC |
| Input Fuse Rating | 100A |
| Output Fuse Rating | 100A |
If you have any compatibility questions before you buy (ie. furniture or other items blocking your weather strip), please email us pictures of your van at info@Automotiveupfitters.com or call (717) 524 5002

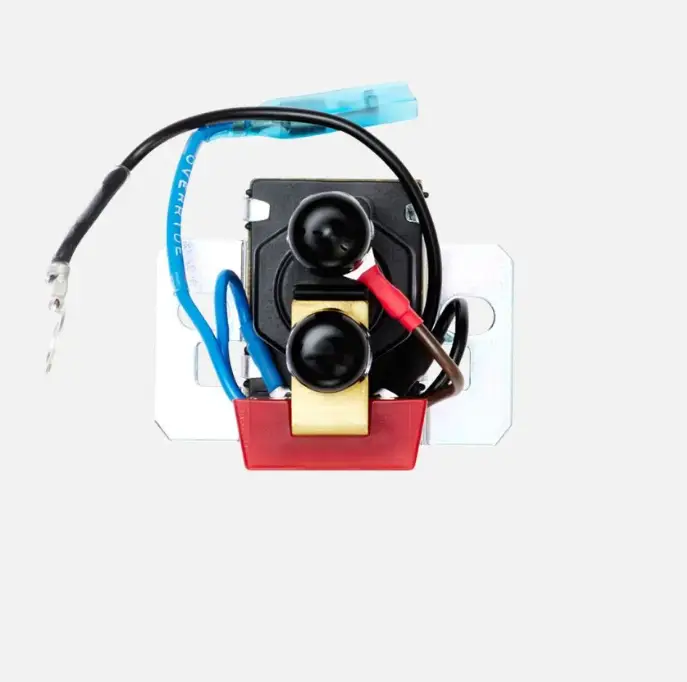

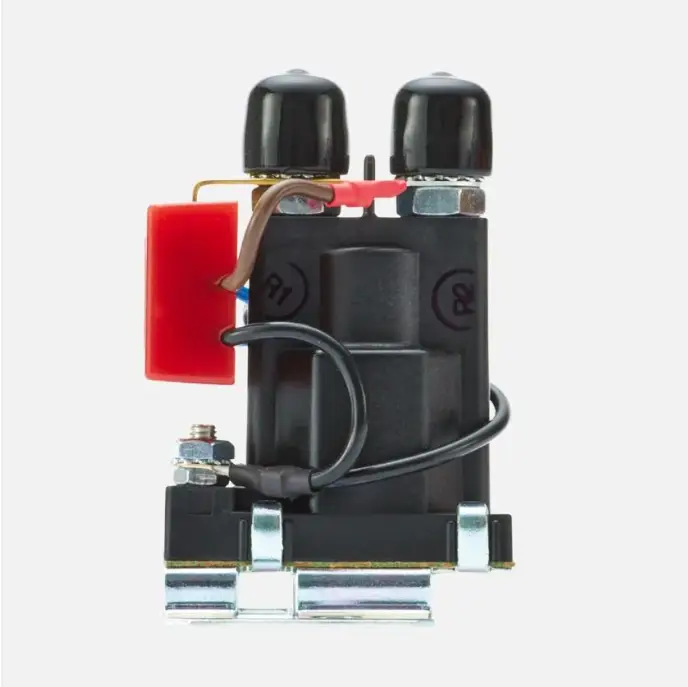

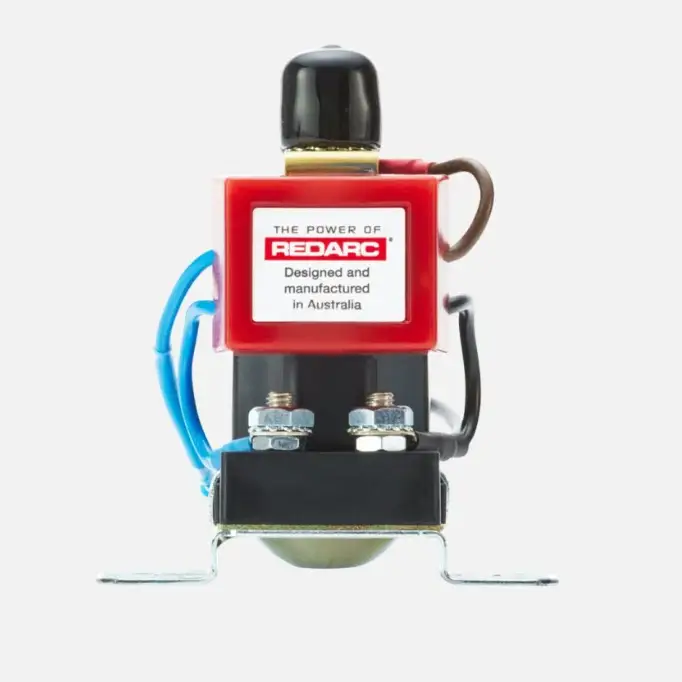

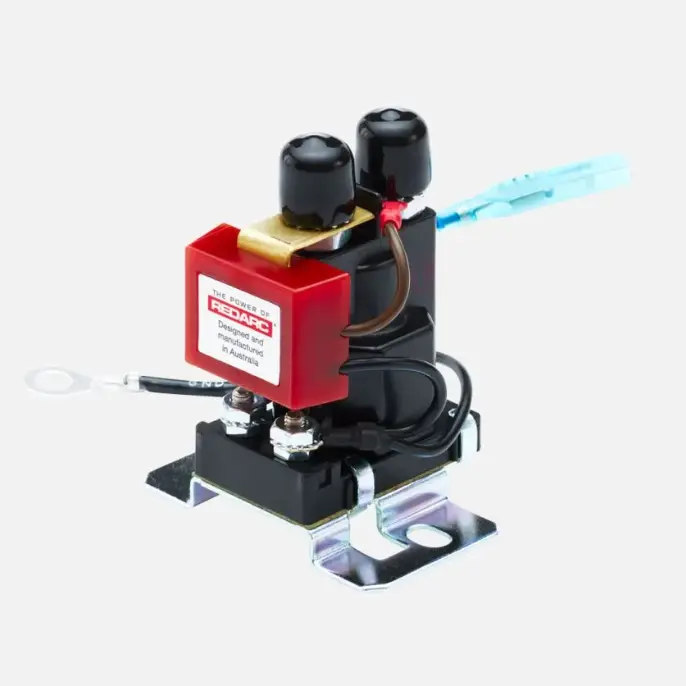

The REDARC Smart Start® SBI12D is a 100A 12v dual battery isolator used in a dual battery system. It protects the start battery from excessive discharge while allowing the auxiliary battery to supply non-essential loads.
