BMS Load Disconnect Isolator
$145.00

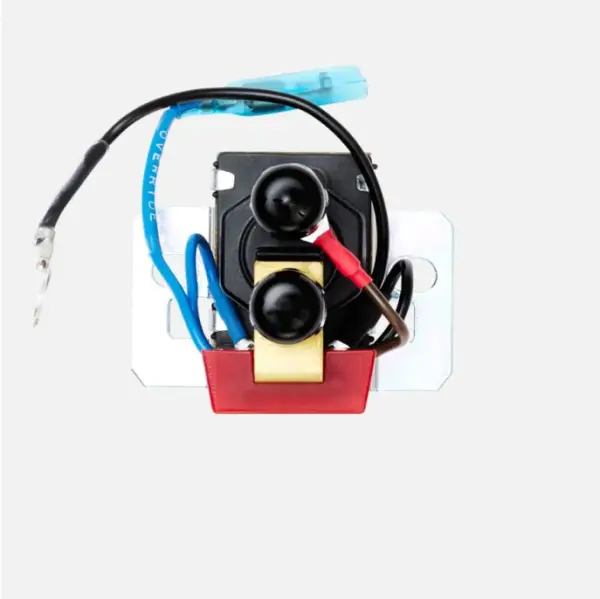

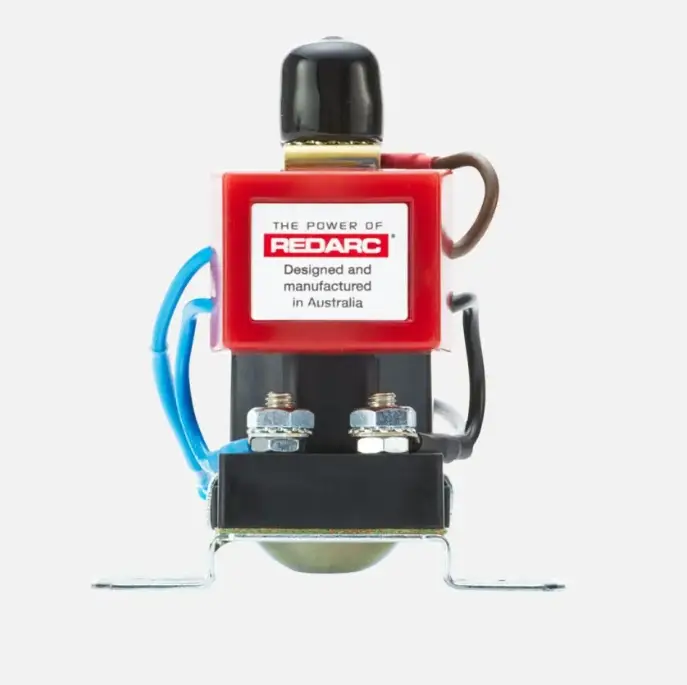

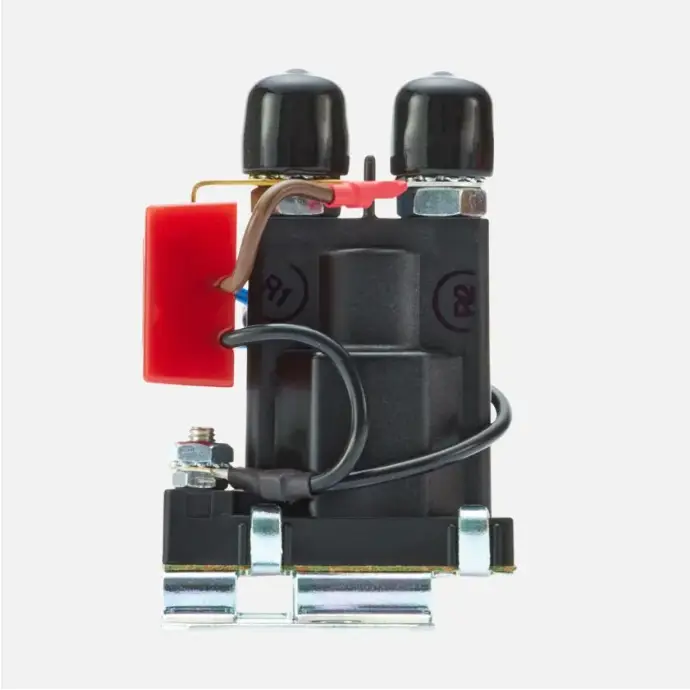

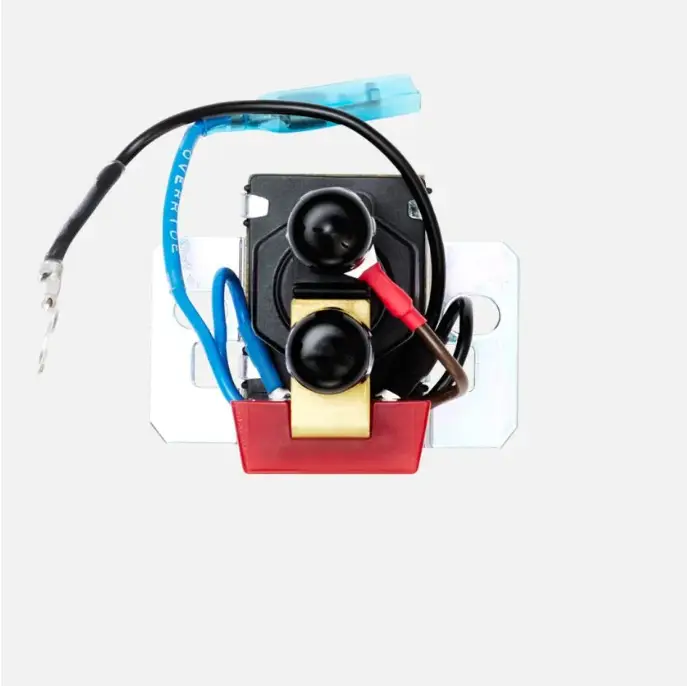

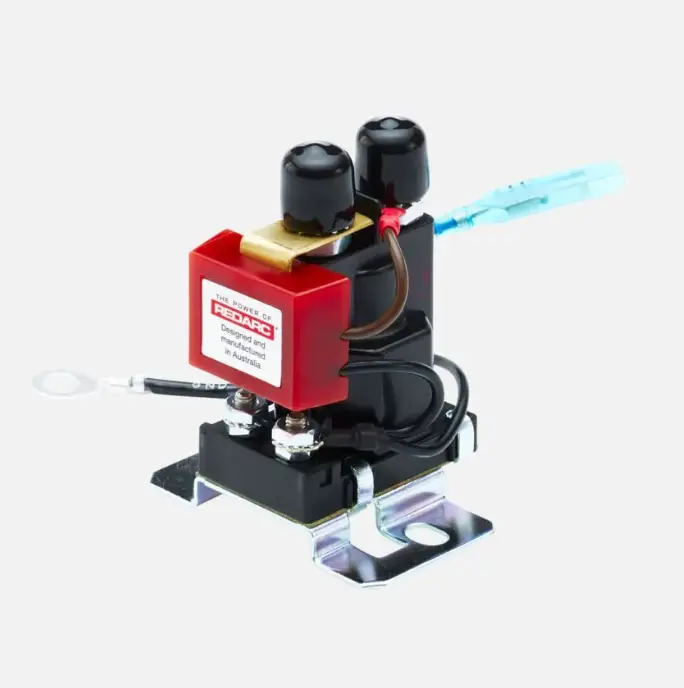

The SBI12-BLD is used in conjunction with a REDARCÂ Manager30Â Battery Management System (BMS)Â to protect the auxiliary battery from excessive discharge. Specifically designed for use as the load disconnect solenoid controlled by the BMS, the black (earth wire) should be connected to the load pin of the BMS.
The BMS sets the turn on and turn off points through its settings and switches this black wire (earth when loads should be on, no earth when loads should be off), and there is additional voltage thresholds monitored by the Smart Start SBI12-BLD to ensure reliable solenoid engagement.
Voltage spike protection
The SBI12-BLD smart start battery isolator incorporates a number of spike protection components specifically designed to reduce the risk of damaging the unit, and is designed to prevent any spikes generated by the solenoid coil from affecting vehicle equipment.
Features
- Overmould design
- Compact in size and easy to install
- Silver contacts for longer life and suitable for marine applications
- Power saving technology
- Fault indication
- Fully surge protected
| Max. Inrush Current | 400A |
|---|---|
| Max. Continous Current | 100A |
| Turn On Voltage | 10.2V |
| Turn Off Voltage | 10V |
| Turn On Delay | 5 seconds |
| Turn Off Delay | 10 seconds |
| Standby Current | <5mA |
| Operating Current | <0.1A |
| Weight | 7 oz (200 g) |
| height | 2.48″ (70 mm) |
| width | 2.95″ (75 mm) |
| depth | length | 3.15″ (80 mm) |
| Warranty | 2 Years |
| System Voltage | 12V |
| Output Voltage | 12V DC |
| Input Fuse Rating | 100A |
| Output Fuse Rating | 100A |
If you have any compatibility questions before you buy (ie. furniture or other items blocking your weather strip), please email us pictures of your van at info@Automotiveupfitters.com or call (717) 524 5002
The SBI12-BLD is used in conjunction with a REDARC Manager30 BMS in a 12v negative ground automotive system to protect the auxiliary battery from excessive discharge.
