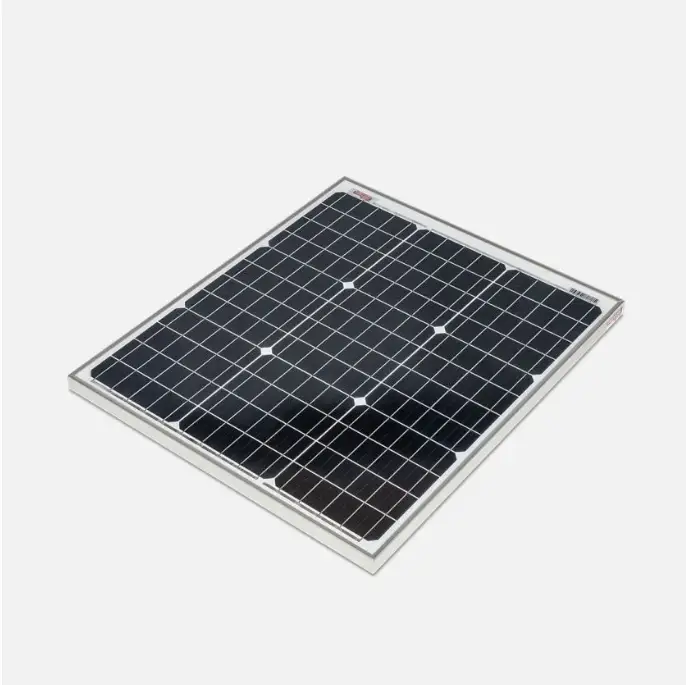

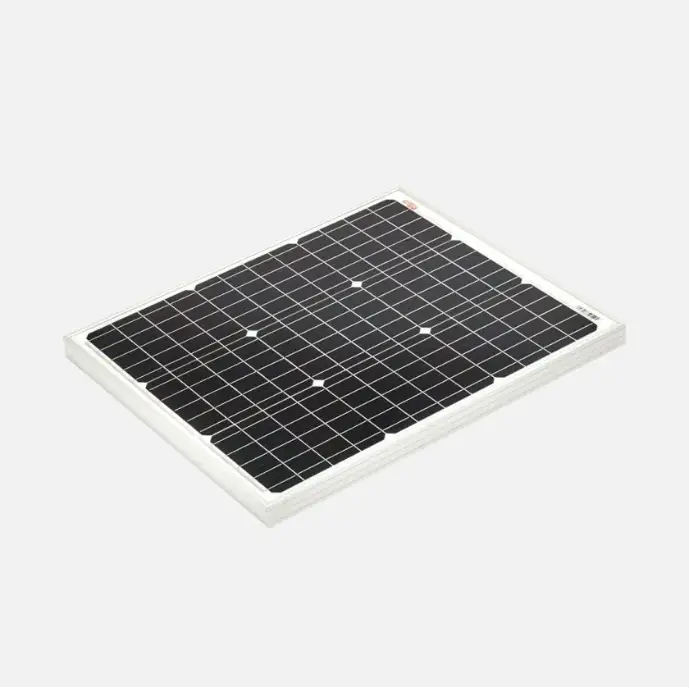

50W Monocrystalline Solar Panel
$214.00
Looking for the best 50w solar panel for camping? The REDARC monocrystalline flat panels are highly efficient with a robust design. A tempered glass coating and a sturdy aluminium frame ensure that our solar panels will withstand harsh road conditions and extreme weather conditions.
These are designed for a fixed installation, typically on the roof area of RV’s, motorhomes, as well as some camper trailer and 4×4 vehicle applications.
Featuring an anodised aluminium frame and tempered glass coating they are well suited for outdoor use and employ MC4 style connectors for easy installation.
Fixed Solar Panels feature a weight improvement and smaller footprint design for their power output, effectively contributing to a lighter, smaller design with greater cell efficiency.
The Fixed Solar Panels will integrate into the REDARC product line and will be supported by existing Solar Regulator and Solar Accessory products.
Each panel is tested at time of manufacture to conform to CE standards, so you can be sure that the panel output is exactly as described in its specification.
Features
- Monocrystalline construction
- Anodised Aluminium Frame
- Robust tempered glass coating
Dimensions
23.2″ × 19.9″ × 1.4″
| Solar Cell Type | Monocrystalline |
|---|---|
| Open Circuit Voltage | 22.3V |
| Watts | 50W |
| Frame or Material | Anodized aluminium |
| Max. Power Voltage | 20V |
| Recommended Regulator | SRP Bare Wire Regulator |
| Short Circuit Current | 2.7A |
| Conversion Efficiency | 20.60% |
| Operating Temperature | −40°F to +185°F |
| Cable Length | 3′ (900 mm) |
| Weight | 7.9 lb (3.6 kg) |
| height | 23.2″ (590 mm) |
| width | 19.9″ (505 mm) |
| depth | length | 1.4″ (35 mm) |
| Warranty | 2 Years |
| Power Tolerance | ± 3% |
| Max Power Current | 2.5A |
| Connector Type | MC4-style |
| Peak Power | 50W |
If you have any compatibility questions before you buy (ie. furniture or other items blocking your weather strip), please email us pictures of your van at info@Automotiveupfitters.com or call (717) 524 5002
The REDARC 50W Monocrystalline Solar Panel is a standard monocrystalline flat panel designed to capture solar energy to keep batteries charged throughout the day.
