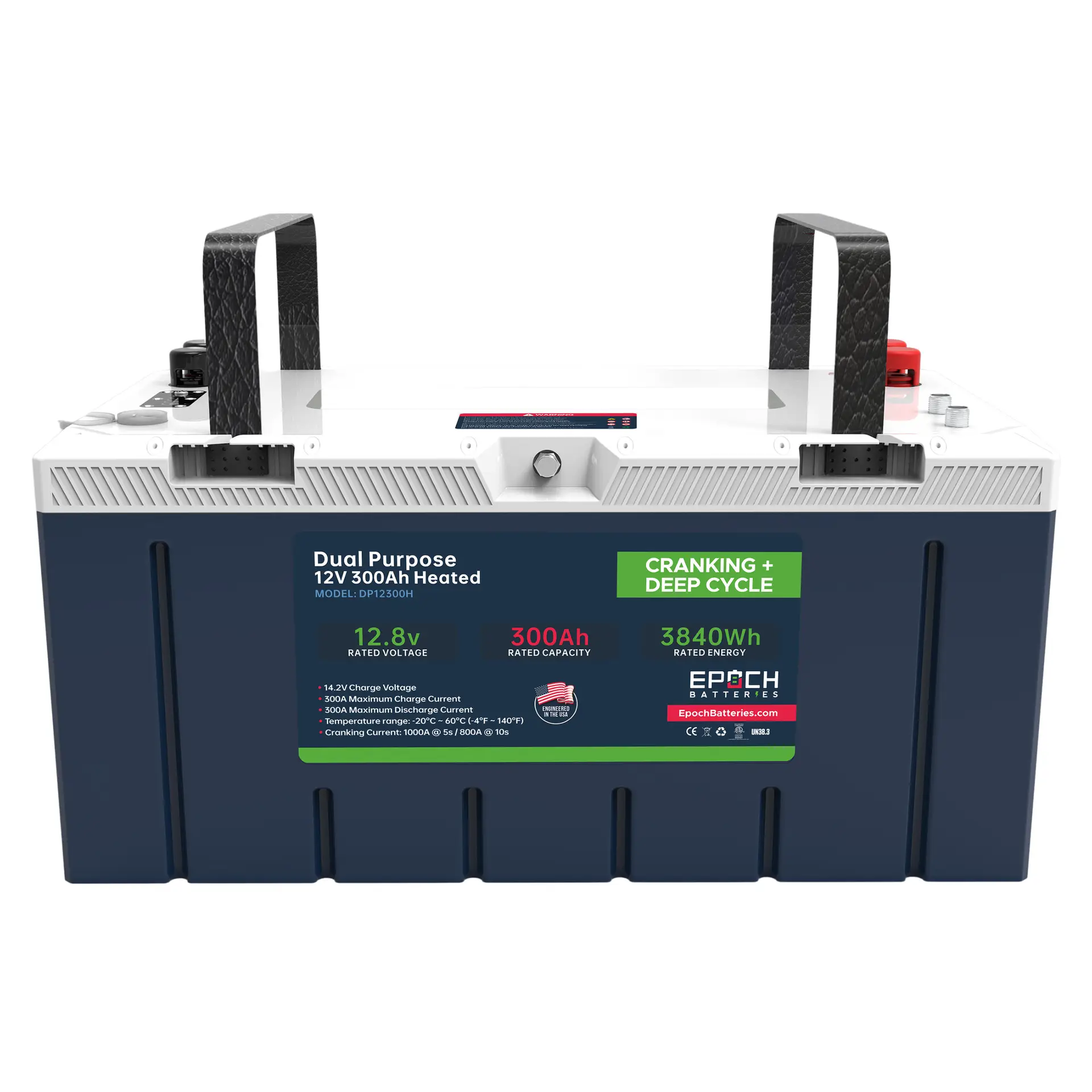

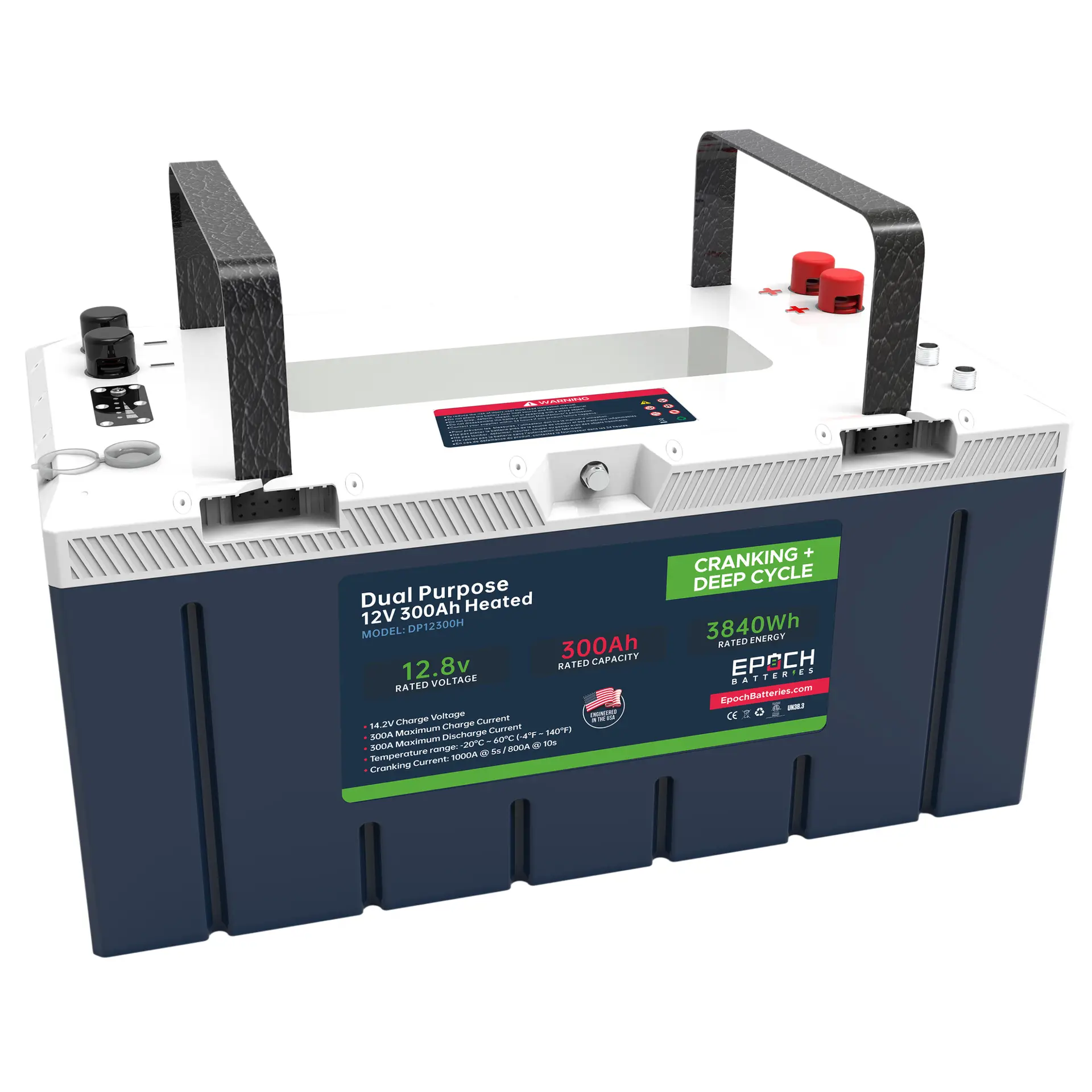

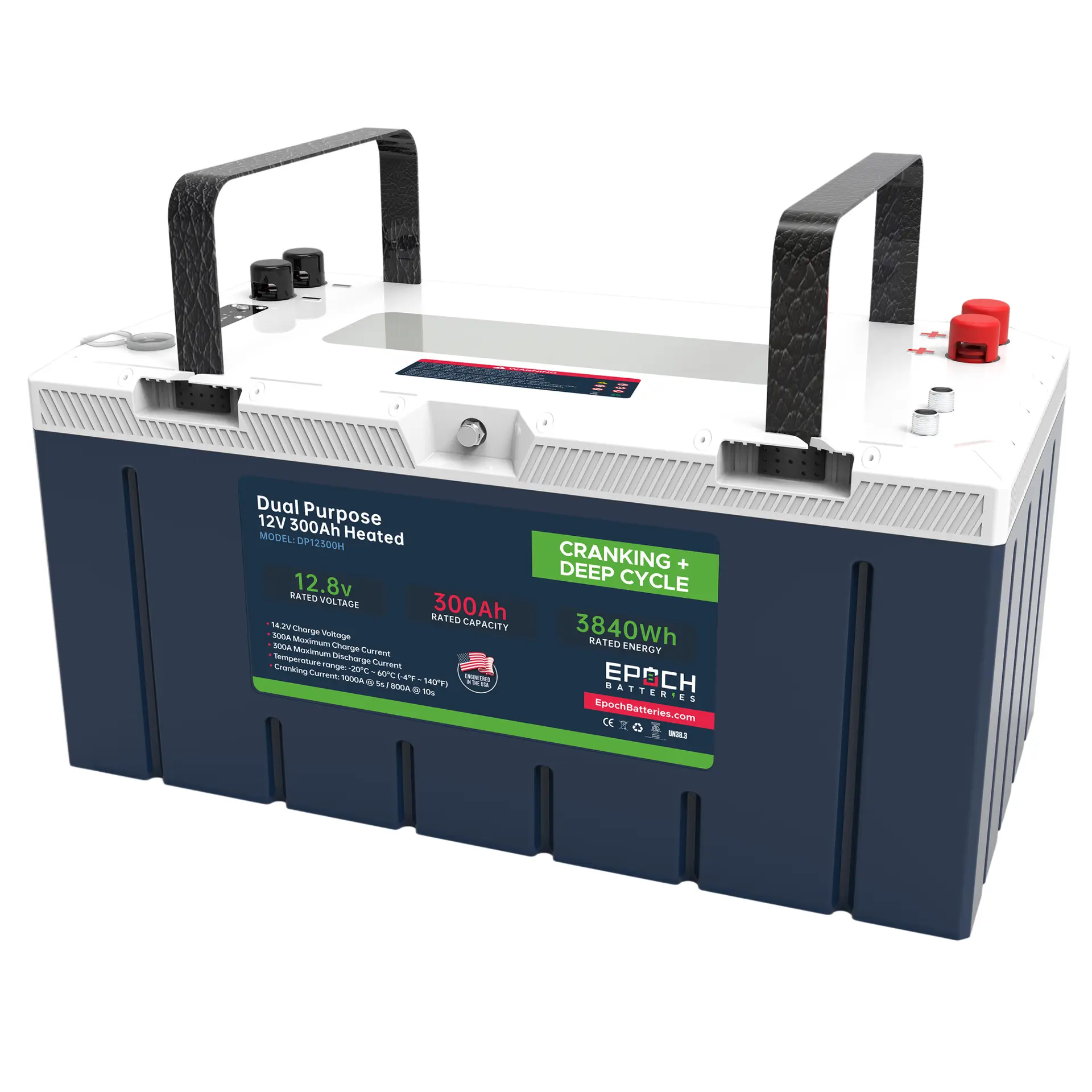

12V 300Ah Pro Series – LiFePO4 Cranking & Deep Cycle Lithium Battery (Dual Purpose)
SKU: DP12300H
$1,499.99
Configuration
Cell Configuration: 4S3P
Chemistry: LiFePO4
Current
Ah Capacity: 300Ah
Max Continuous Discharge Amps: 300A
Max Charge Current Amps: 300A
Max Discharge Peak Current Amps: 1,000A @ 5s
Series | Parallel: Max (4) in Series, Max (16) in Parallel
Voltage
Voltage: 12.8V
Max Charge Voltage: 15.4V
Operating Voltage Range: 10.0 – 15.4V
Temperature
Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight: 81 lbs
Dimensions
Length: 19.70 (inches)
Width: 10.5 (inches)
Height: 9.75 (inches
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
-
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger’s manual or the manufacturer.
If you have any compatibility questions before you buy (ie. furniture or other items blocking your weather strip), please email us pictures of your van at info@Automotiveupfitters.com or call (717) 524 5002
- LiFePO4 Chemistry
- Peak Discharge of 1,000A @ 5s, 800A @ 10s
- Max Charge Current of 300A (Continuous)
- Max Discharge Current of 300A (Continuous)
- Victron Comms – CANBUS entire string of batteries to Victron Ecosystem
- HEATED – Internal heating allows for charging in sub-zero conditions
- BLUETOOTH – iOS and Android Apps
- BLUETOOTH – Over the air Firmware update via the app
- External Battery Gauge – Touch Screen (Optional – Coming soon)
- Communications Box for more Inverter, NMEA2k compatibility (Optional – Coming soon)
- IP67 Rated, Dust and WATERPROOF
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (16) in Parallel
- 6000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
