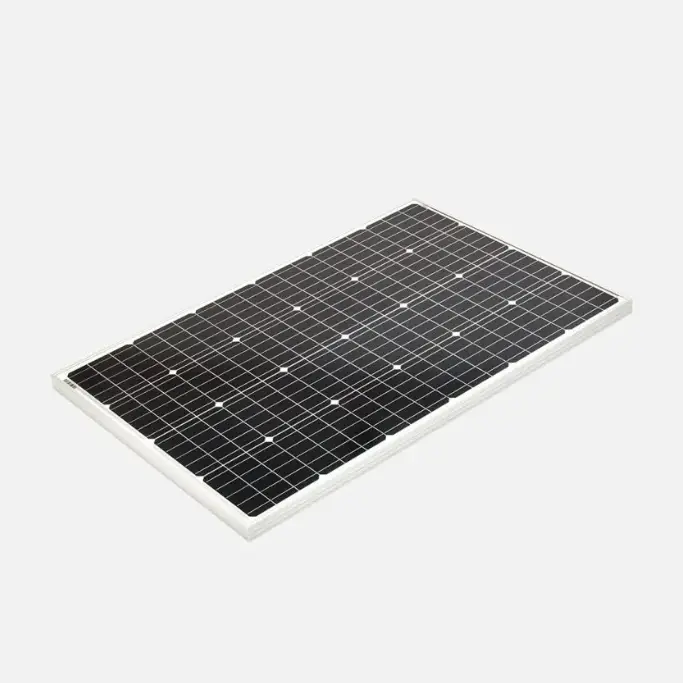

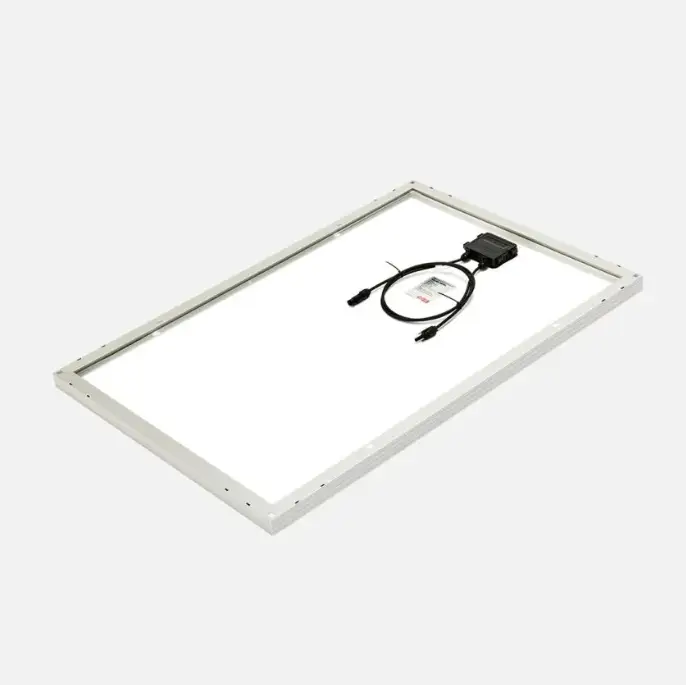

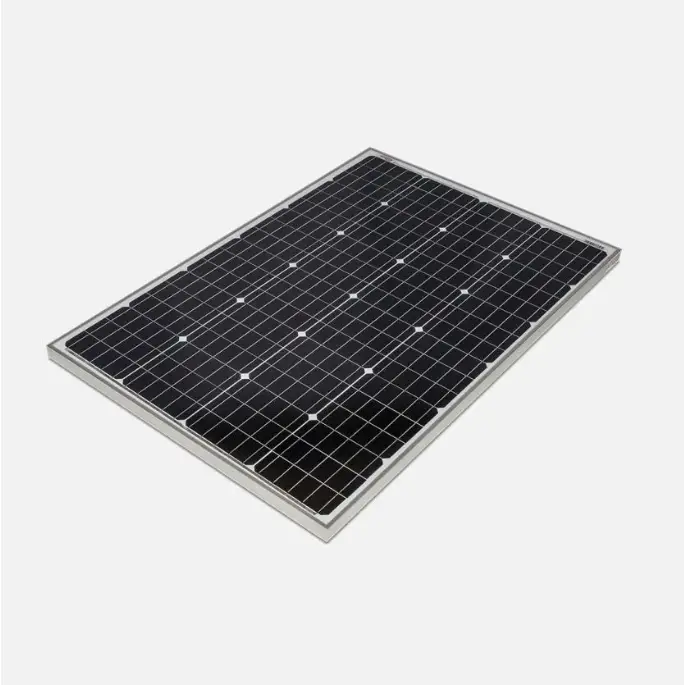

120W Monocrystalline Solar Panel
$385.00
Looking for the best 120w solar panel for camping? REDARC’s monocrystalline flat panels are highly efficient with a robust design. A tempered glass coating and a sturdy aluminium frame ensure that our panels will withstand harsh road conditions and extreme weather conditions.
These are designed for a fixed installation, typically on the roof area of RV’s, motorhomes, as well as some camper trailer and 4×4 vehicle applications.
Featuring an anodised aluminium frame and tempered glass coating they are well suited for outdoor use and employ MC4 style connectors for easy installation.
Fixed Solar Panels feature a weight improvement and smaller footprint design for their power output, effectively contributing to a lighter, smaller design with greater cell efficiency.
The Fixed Solar Panels will integrate into the REDARC product line and will be supported by existing Solar Regulator and Solar Accessory products.
Features
- Monocrystalline construction
- Anodised Aluminium Frame
- Robust tempered glass coating
Dimensions
39.6″ × 26.4″ × 1.4″
| Solar Cell Type | Monocrystalline |
|---|---|
| Open Circuit Voltage | 22.3V |
| Watts | 120W |
| Frame or Material | Anodized aluminium |
| Max. Power Voltage | 20V |
| Recommended Regulator | SRP Bare Wire Regulator |
| Short Circuit Current | 6.48A |
| Conversion Efficiency | 20.60% |
| Operating Temperature | −40°F to +185°F |
| Cable Length | 3′ (900 mm) |
| Weight | 16.5 lb (7.5 kg) |
| height | 39.6″ (1005 mm) |
| width | 26.4″ (670 mm) |
| depth | length | 1.4″ (35 mm) |
| Warranty | 2 Years |
| Power Tolerance | ± 3% |
| Max Power Current | 6A |
| Connector Type | MC4-style |
| Peak Power | 120W |
If you have any compatibility questions before you buy (ie. furniture or other items blocking your weather strip), please email us pictures of your van at info@Automotiveupfitters.com or call (717) 524 5002
The REDARC 120W Monocrystalline Solar Panel is a standard monocrystalline flat solar panel designed to capture solar energy to keep batteries charged throughout the day.
