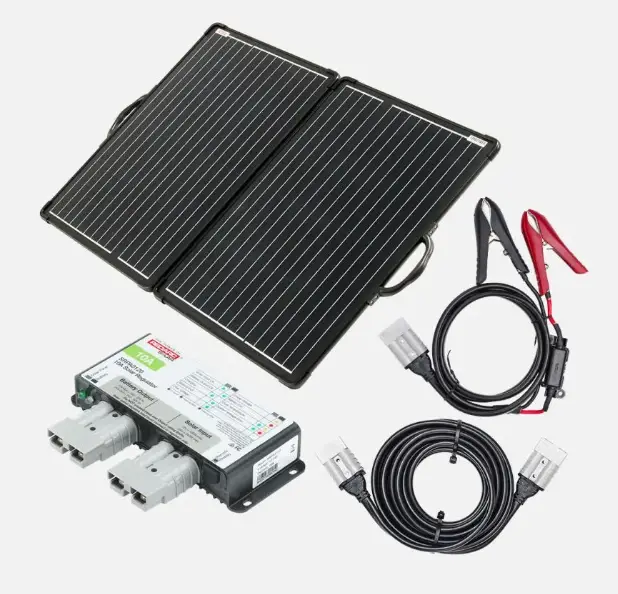

120W Folding Solar Panel Kit
$875.00
Looking for a 120W portable folding solar panel for camping? REDARC’s monocrystalline portable camping solar panels are the perfect addition to any dual battery or off-road setup.
Folding out to 40.6″ × 28.1″ × 1.0″ means that this panel tucks away neatly in the vehicle but opens up to capture an effective amount of sun power to keep you in-charge.
This ultralightweight, un-glazed panel ensures it is less fragile than many other folding solar panels and features an ETFE (ethylene tetrafluoroethylene) coating designed to protect the Monocrystalline solar cells from damage, as opposed to employing a traditional glass design like many other portable products.
Benefits of ETFE coating:
- Withstands high temperatures
- Allows maximum amount of solar energy to penetrate the solar cell
- More flexible than standard coatings
The Folding Solar Panels will feature genuine industry standard Andersonâ„¢ SBâ„¢ 50 connectors for convenience of plug-and-play portability and includes a free protective carry bag.
Perfect to add charge via the sun to your in-vehicle battery charger or battery management system for extended stays or additional power to run 12v accessories.
Add an Anderson to Anderson cable to connect your panels to your charger, and to allow you to setup under shade on hot days but ensure your solar panel is in sunlight capturing additional energy.
*Solar Regulator battery default setting is AGM. REDARC recommends the purchase of the REDARC Solar Remote Monitor to change battery types and configuration settings.
*Not compatible with Lithium (LiFePO4) batteries.
| Open Circuit Voltage | 24.0v |
|---|---|
| Watts | 120W |
| Frame or Material | Anodized aluminium |
| Max. Power Voltage | 20V |
| Short Circuit Current | 6.48A |
| Conversion Efficiency | 20.60% |
| Operating Temperature | −40°F to +185°F |
| Cable Length | 1′ (300 mm) |
| Weight | 20.9 lb (9.5 kg) |
| height | 0.98″ (25 mm) |
| width | 31.1″ (790 mm) |
| depth | length | 53.1″ (1350 mm) |
| Warranty | 2 Years |
| Dimensions Open | 40.6″ x 28.1″ x 1″ (1030 x 715 x 25 mm) |
| Dimensions Closed | 20.3″ x 28.1″ x 2″ (515 x 715 x 50 mm) |
| Power Tolerance | ± 3% |
| Max Power Current | 6A |
| Connector Type | Anderson™ SB™ 50 |
| Peak Power | 120W (2 x 60W) |
If you have any compatibility questions before you buy (ie. furniture or other items blocking your weather strip), please email us pictures of your van at info@Automotiveupfitters.com or call (717) 524 5002
The REDARC 120 Watt Portable Folding Solar Panel features highly efficient Monocrystalline cells. With an adjustable lightweight leg design, the panels can be conveniently angled towards the sun.
